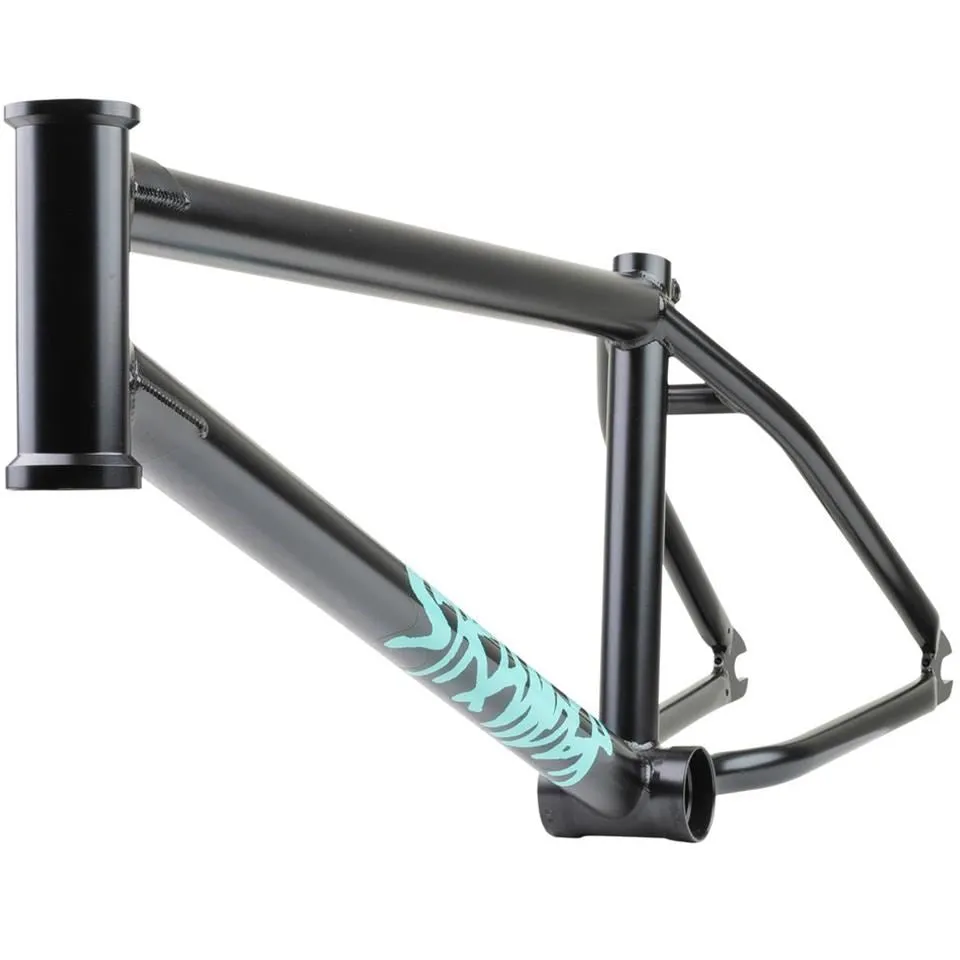

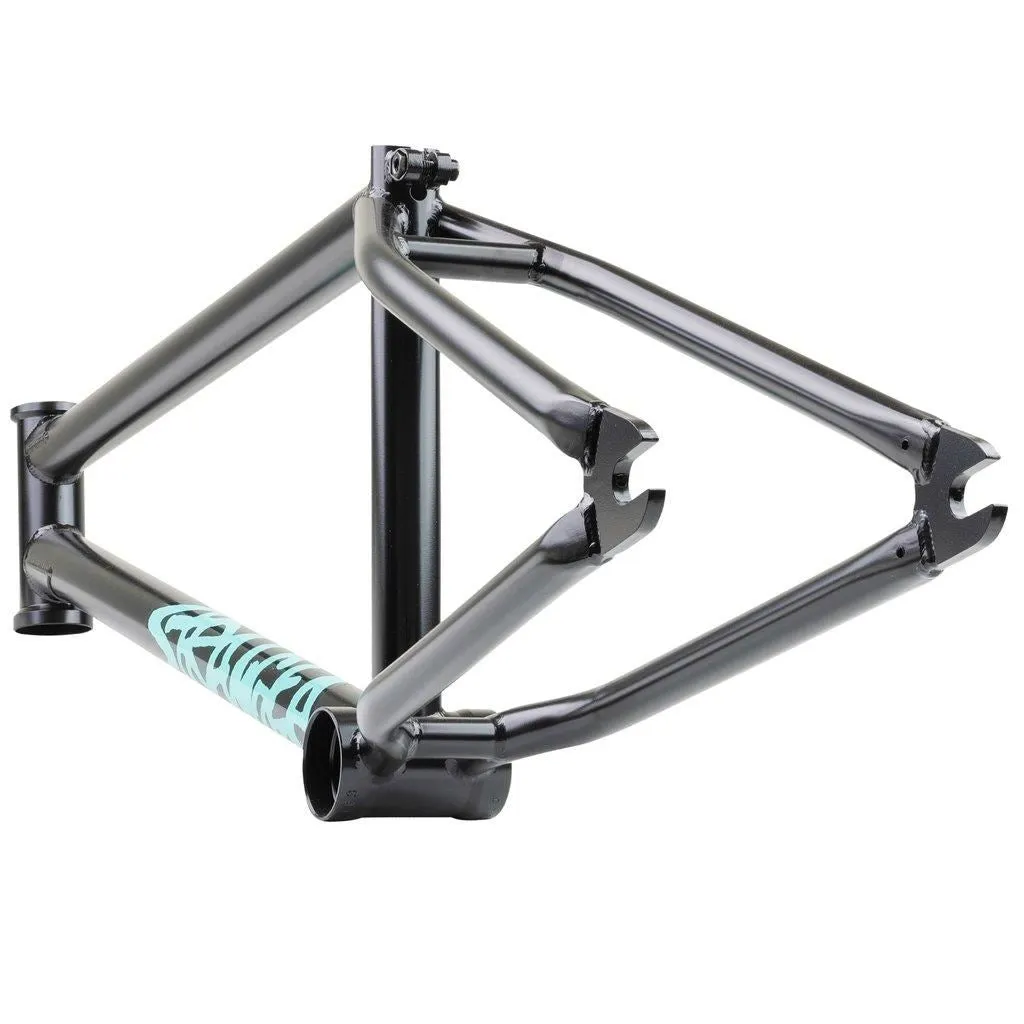

The Piston Frame features a street style responsive 12.8 rear end and 11.5 bb height for the perfect pop. Made from durable straight gauge Chromoly with classic minimal dropouts that stay out of the way on grinds. Designed with Connor Keating.

###section###

Product Specs

1. MATERIAL: Chromoly
2. HEAD TUBE ANGLE: 75.5°
3. SEAT TUBE ANGLE: 70°
4. CHAIN STAY LENGTH: 12.8
5. BB HEIGHT: 11.5
6. WHEEL SIZE: 20
7. STANDOVER HEIGHT: 9
8. DROPOUT SIZE: 14mm
9. HEADSET TYPE: Integrated
10. BB TYPE: Mid
11. BRAKE MOUNTS: Brakeless
12. GYRO TABS: Brakeless
13. WEIGHT: 5.2lbs

###section###

Product Highlights

• Responsive Geometry with Short Backend and Steep Headtube
• Best suited to Street and Park riding
• Built in chain tensioners
• High-quality Chromoly construction
• Brakeless frame
