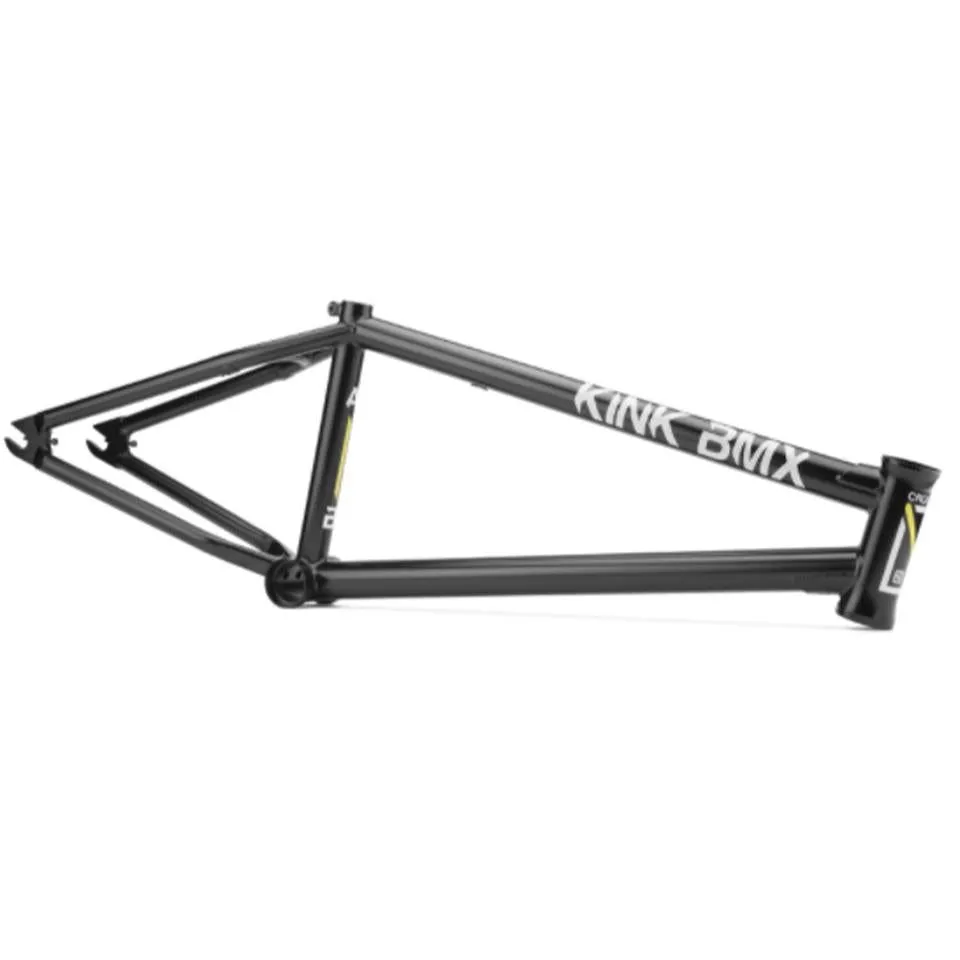

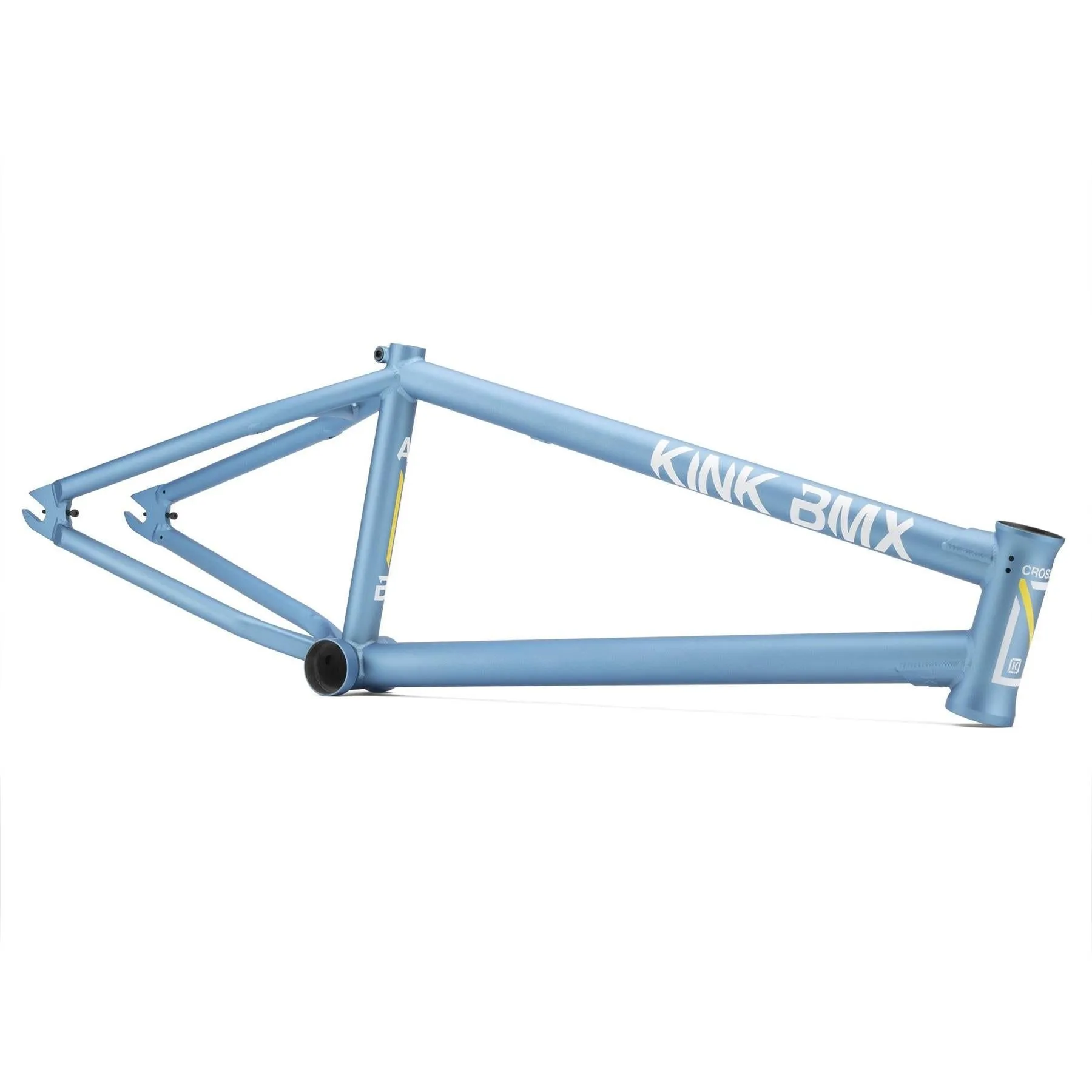

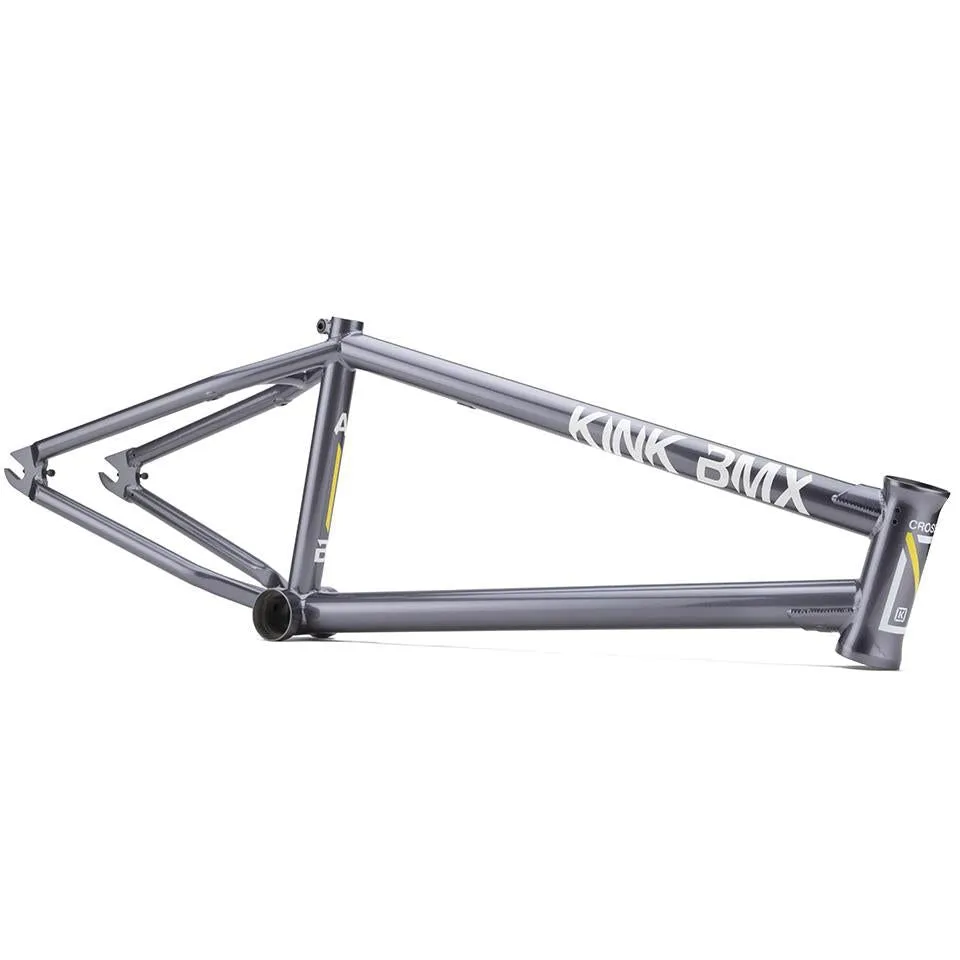

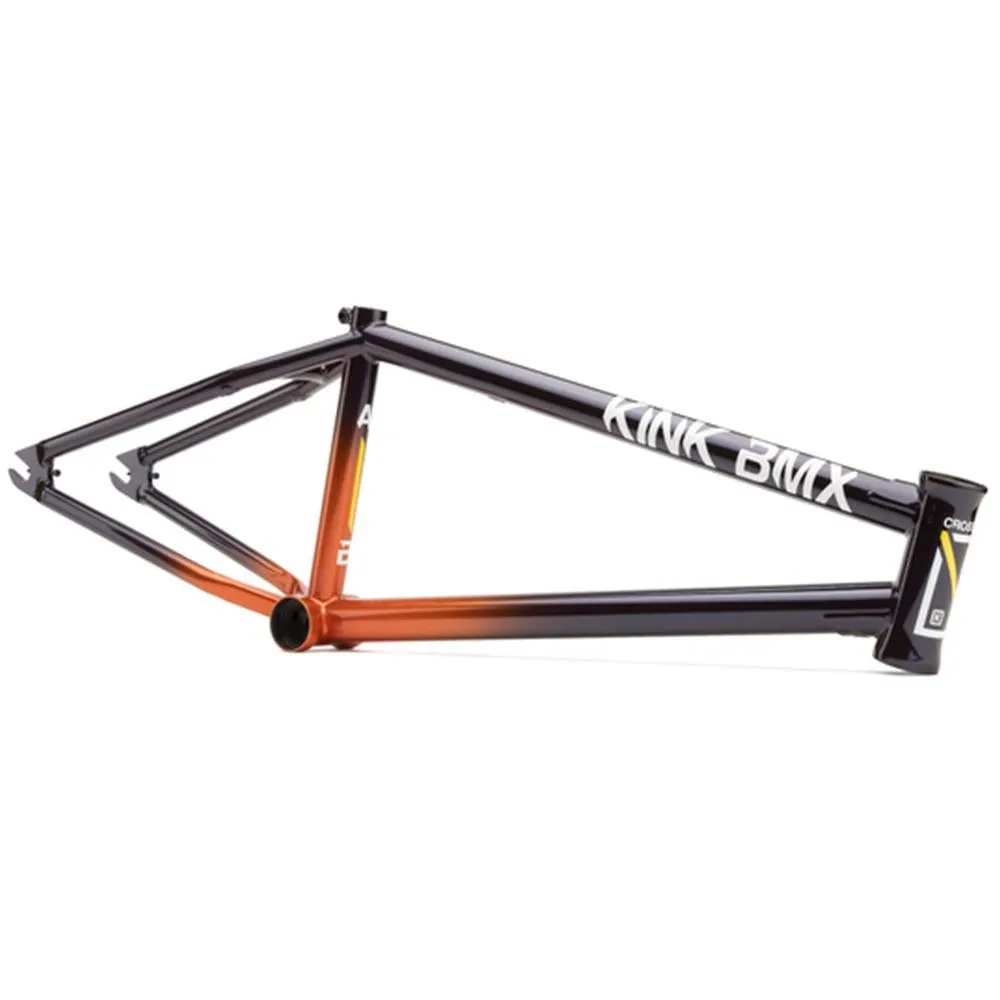

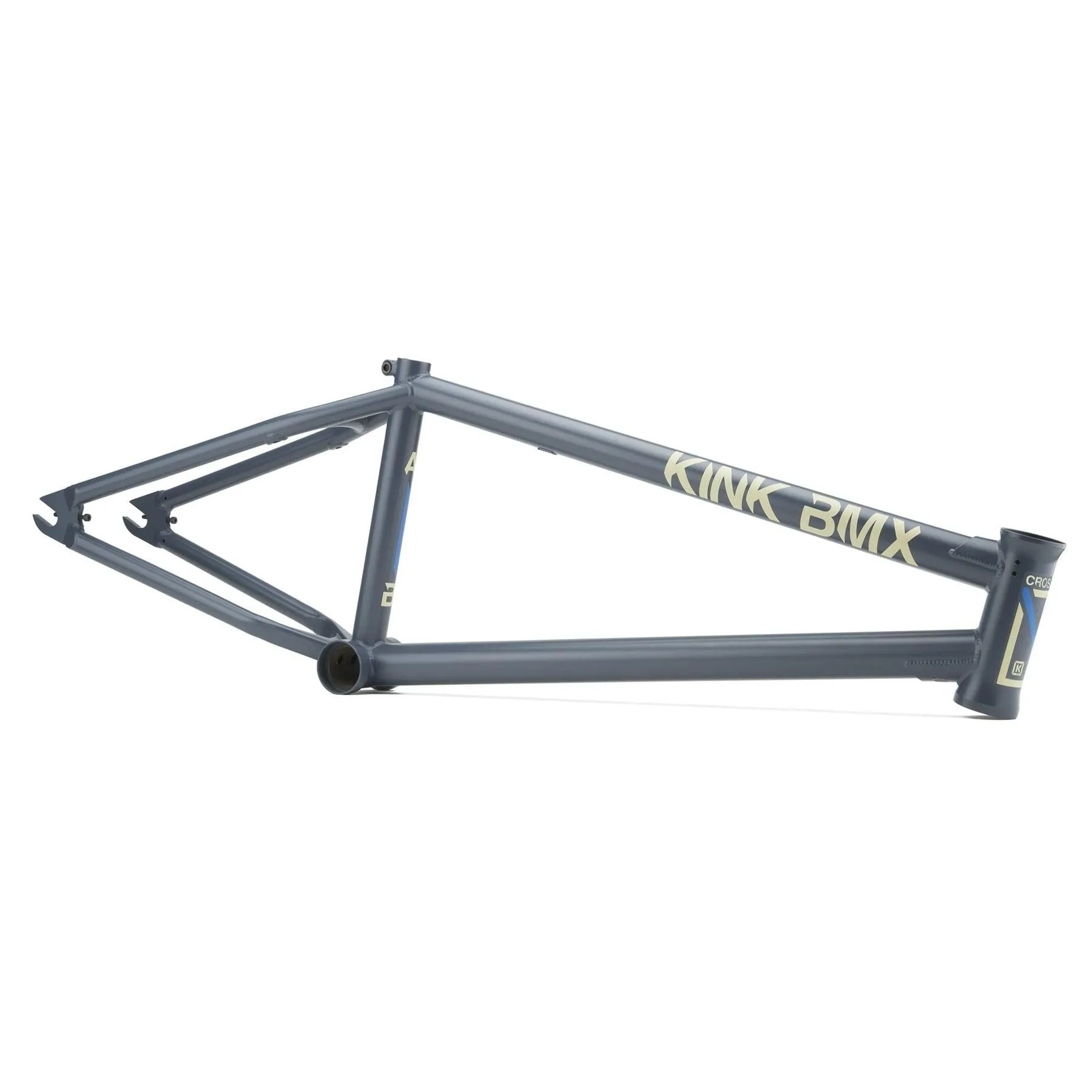

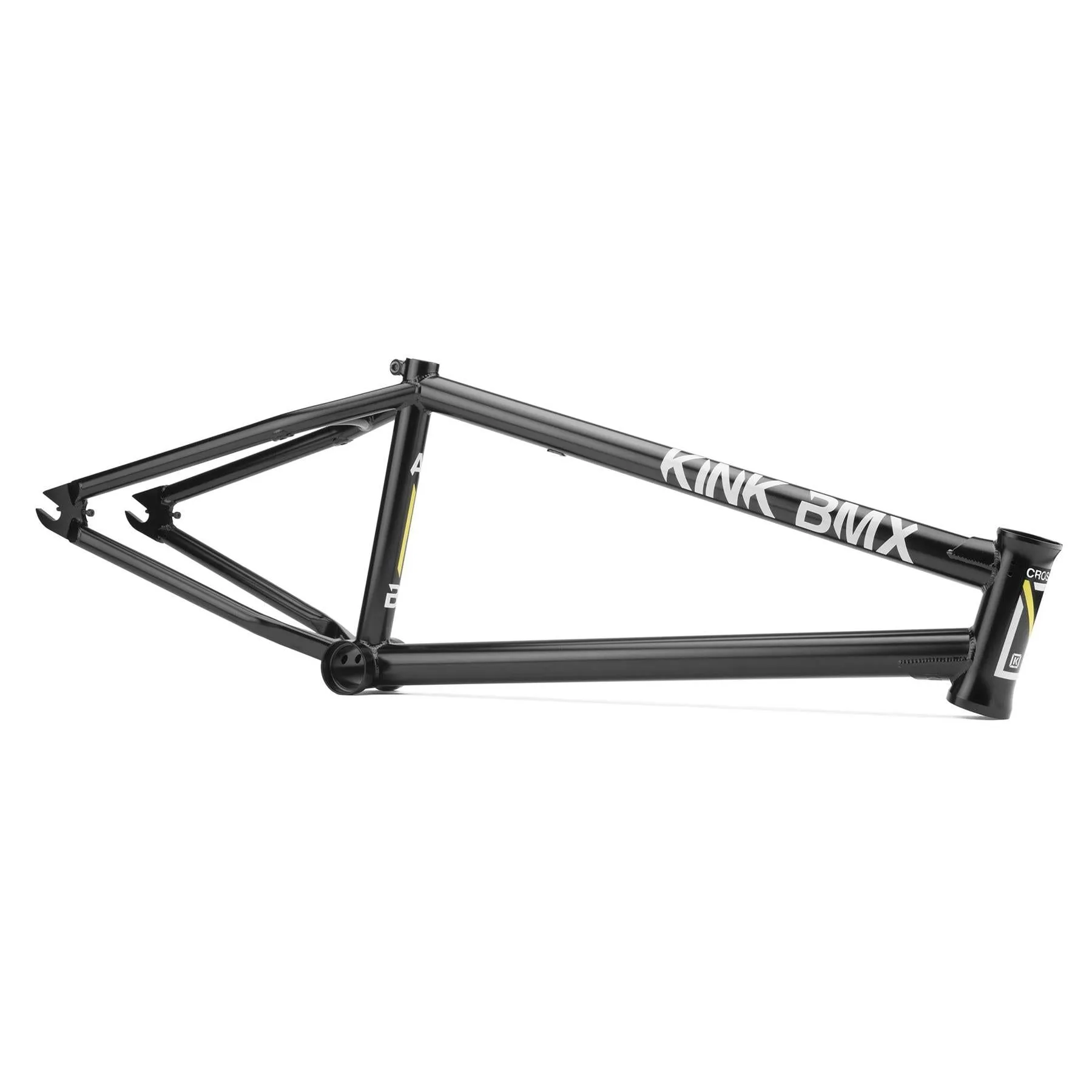

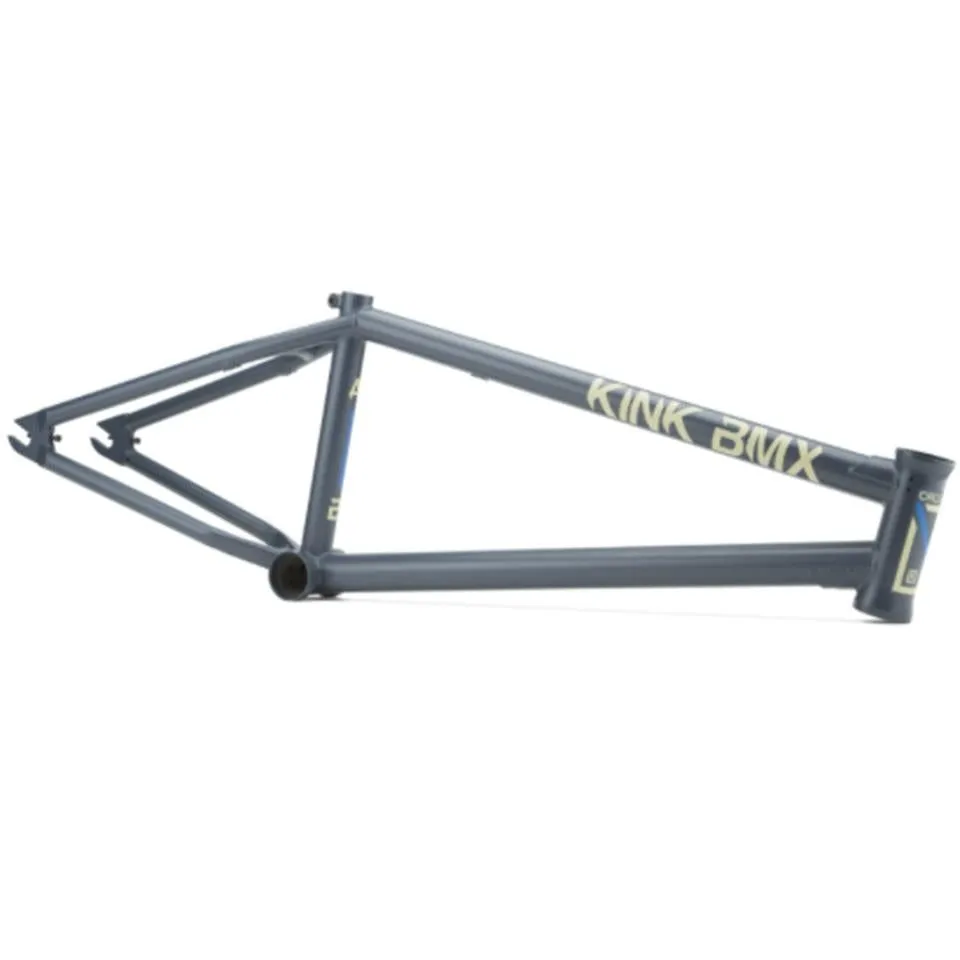

The Kink Crosscut is a modern-day beast of a frame. The double-butted toptube and downtube with both upper and lower gussets will stand up to the hardest riding. and the short 12.5 chainstay length and quick 75.5° headtube angle make this frame nice and nimble. The generous 9.25 standover height gives the frame a clean and traditional look. but with the aforementioned modern-day geometry. The investment cast chainstay yoke enables you to ride any modern tire size up to 2.55 and run your choice of 25t or 28t sprocket. This frame also comes standard with an integrated seat post clamp. integrated chain tensioners. and removeable brake mounts.

###section###

Product Specs

1. MATERIAL: 100% 4130 Chromoly
2. HEAD TUBE ANGLE: 75.5°
3. SEAT TUBE ANGLE: 71°
4. CHAIN STAY LENGTH: 12.5
5. BB HEIGHT: 11.6
6. WHEEL SIZE: 20
7. STANDOVER HEIGHT: 9.25
8. DROPOUT SIZE: 14mm
9. HEADSET TYPE: Integrated
10. BB TYPE: Mid
11. BRAKE MOUNTS: Removable
12. GYRO TABS: Removable
13. WEIGHT: 5.4lbs

###section###

Product Highlights

• Responsive Geometry with Short Backend and Steep Headtube
• Best suited to Street and Park riding
• High-quality Chromoly construction
• Strong and durable investment cast chainstay yoke
• Strong double butted tubing
